 Item #:OD1+/- OD1OD2+/- OD2OL+/- OL
L1+/- L1TTPriceAttachments

1/8"+0/-0.005"3/8"+0/-0.020"3.66"+/-1/16"
1/2"+/-1/16"
1/4-28 UNFContact UsN/A

1/8"
+0/-0.005"
3/8"
+0/-0.020"
3.85"
+/-1/16"
1/2"
+/-1/16"1/4-28 UNF
Contact Us
N/A

1/8"
+0/-0.005"
3/8"+0/-0.020"
4.25"
+/-1/16"
1/2"+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/8"
+0/-0.005"
3/8"+0/-0.020"4.625"
+/-1/16"
1/2"
+/-1/16"1/4-28 UNF
Contact Us
N/A

1/8"+0/-0.005"
3/8"+0/-0.020"
5.00"
+/-1/16"
1/2"+/-1/16"1/4-28 UNFContact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
3.25"
+/-1/16"
1/2"+/-1/16"1/4-28 UNF
Contact Us
N/A

3/16"+0/-0.005"
3/8"+0/-0.020"
3.625"
+/-1/16"
1/2"+/-1/16"1/4-28 UNF
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
4.00"
+/-1/16"
1/2"+/-1/16"
1/4-28 UNF
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
5.00"
+/-1/16"1/2"+/-1/16"
1/4-28 UNF
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
5.50"+/-1/16"1/2"+/-1/16"1/4-28 UNF*
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"6.00"
+/-1/16"1/2"+/-1/16"
1/4-28 UNF*
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
6.25"+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*
Contact UsN/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
7.00"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*
Contact UsN/A

3/16"
+0/-0.005"3/8"+0/-0.020"
7.50"
+/-1/16"1/2"
+/-1/16"
1/4-28 UNF*
Contact Us
N/A

1/8", 4mm, 3/16"+0/-0.005"3/8"+0/-0.020"
Custom+/-1/16"
3/8", 1/2"+/-1/16"
1/4-28 UNF*Contact Us
Custom Page

Product Specifications & Attachments:

Products

Description:

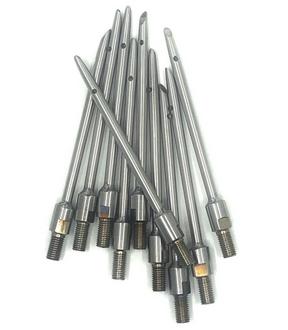

 | Closed-Mouth Blow Needles

304-series stainless steel blow needles are designed for blow molding manufacturing processes to form plastic parts for end-users. These needles are designed with an angled-tip, at the mouth of the needle to help pierce plastic, and thru-holes near tube tip for compressed air flow. These can be used in conjunction with our stainless steel and/or brass blow needle cylinders.

 | 300-SERIES SS Blow Needles

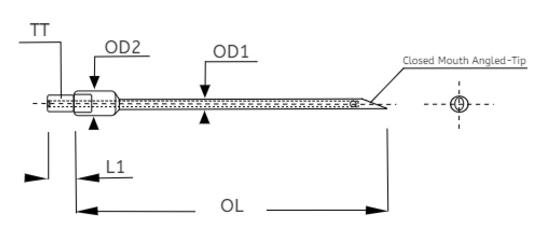

Dimensions:

Closed-Mouth BLOW NEEDLES

How to Order:

​​* ​Also available in 5/16-24 UNF  x 3/8" long threads

Product: Closed-Mouth Blow Needle

  OL - Overall Length                              L1 - Length

 OD1, OD2 - Outer Diameter               Material: 304 Stainless Steel

 TT - Thread Type                                   Hardness: N/A

                                                                 Dimensions: Imperial
