OD1	+/- OD1	OD2	+/- OD2	L1	L2	L3	GL	KL	+/- L/GL/KL	Price	Attachments
3"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
3"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
3"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	3/8"	4"	+/-1/16"	Contact Us	N/A
Custom	+/-0.030"	Custom	+0/-0.005"	Custom	Custom	Custom	Custom	Custom	+/-1/16"	Contact Us	Custom Page

Online Submission:

Click 'contact us' above, for an online submission directly through our website.

Description:

| Conveyor Rollers W/ Round Axle

|M ould Supplies and Component Parts

How to Order:

OD1	+/- OD1	OD2	+/- OD2	L1	L2	L3	KL	+/- L/KL	Price	Attachments
3"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	4"	+/-1/16"	Contact Us	N/A
3"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	4"	+/-1/16"	Contact Us	N/A
3"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	4"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	4"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	4"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	4"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	4"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	4"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	4"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	4"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	4"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	4"	+/-1/16"	Contact Us	N/A
Custom	+/-0.030"	Custom	+0/-0.005"	Custom	Custom	Custom	Custom	+/-1/16"	Contact Us	Custom Page

COnveyor Roller W/ Round Axle

OD1	+/- OD1	OD2	+/- OD2	L1	L2	L3	+/- L	Price	Attachments
3"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	+/-1/16"	Contact Us	N/A
3"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	+/-1/16"	Contact Us	N/A
3"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	+/-1/16"	Contact Us	N/A
Custom	+/-0.030"	Custom	+0/-0.005"	Custom	Custom	Custom	+/-1/16"	Contact Us	Custom Page

8 Automatic Rd., Unit 9A Brampton, ON Canada L6S 5N4

Tel: 905.791.0377 | sales@dieco-techmfg.com

Manufacturing Services & Industrial Supplies

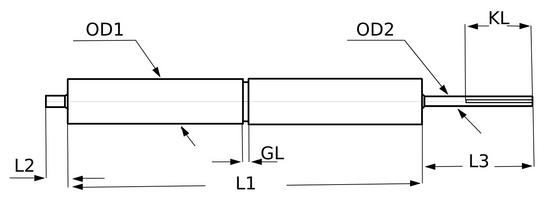

L1 - Roller Length OD2 - Axle Diameter Dimensions: Imperial

L2 - Axle Length 1 KL - Keyway Length (if applicable)

L3 - Axle Length 2 GL - Groove Length (if applicable)

OD1 - Roller Diameter Material: CRS

Additional Information:

Standard Conveyor Roller

Dimensions:

|C onveyor Rollers

Related Products:

E-Mail Us:

sales@dieco-techmfg.com

diecotechmfg@rogers.com

Product: Conveyor Rollers

Product Specifications & Attachments:

Products

Heavy-duty large diameter conveyor rollers are manufactured from steel and used to transport heavy-loads or bulk items such as drums, pallets, or manufactured goods. These rollers have a higher weight-capacity than traditional lower diameter rollers. Used in conjunction with external ball-bearings and housings (sold-separately). Round axle-conveyor rollers are used with compatible round-axle roller systems. Rollers can be manufactured to custom lengths and diameters to replace existing rollers to suit your existing systems or stands.

Standard Conveyor Roller w/ Keyway

Groove Conveyor Roller w/ Keyway

Groove Conveyor Roller

Call Us:

T: 905.791.0377 (Main)

D: 416.728.6889 (Sales)

D: 647.998.6576 (Sales)

OD1	+/- OD1	OD2	+/- OD2	L1	L2	L3	GL	+/- L/GL	Price	Attachments
3"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
3"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
3"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
4"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
5"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1"	+0/-0.005"	23"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1-7/16"	+0/-0.005"	32"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
6"	+/-0.030"	1-7/8"	+0/-0.005"	40"	4"	8"	3/8"	+/-1/16"	Contact Us	N/A
Custom	+/-0.030"	Custom	+0/-0.005"	Custom	Custom	Custom	Custom	+/-1/16"	Contact Us	Custom Page
