Item #:OD1+/- OD1OD2+/- OD2OL+/- OL
L1+/- L1TTPriceAttachments

1/8"+0/-0.005"3/8"+0/-0.020"3.00"+/-1/16"
1/2"+/-1/16"
1/4-28 UNFContact UsN/A

1/8"
+0/-0.005"
3/8"
+0/-0.020"
3.50"
+/-1/16"
1/2"
+/-1/16"1/4-28 UNF
Contact Us
N/A

1/8"
+0/-0.005"
3/8"+0/-0.020"
4.00"
+/-1/16"
1/2"+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/8"
+0/-0.005"
3/8"+0/-0.020"4.50"
+/-1/16"
1/2"
+/-1/16"1/4-28 UNF
Contact Us
N/A

4mm
+0/-0.005"
3/8"+0/-0.020"
4.00"
+/-1/16"
1/2"+/-1/16"1/4-28 UNFContact Us
N/A

4mm
+0/-0.005"
3/8"+0/-0.020"
5.00"
+/-1/16"
1/2"+/-1/16"1/4-28 UNF
Contact Us
N/A

4mm+0/-0.005"
3/8"+0/-0.020"
6.00"
+/-1/16"
1/2"+/-1/16"1/4-28 UNF
Contact Us
N/A

4mm
+0/-0.005"
3/8"+0/-0.020"
7.00"
+/-1/16"
1/2"+/-1/16"
1/4-28 UNF
Contact Us
N/A

4mm
+0/-0.005"
3/8"+0/-0.020"
8.00"
+/-1/16"1/2"+/-1/16"
1/4-28 UNF
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
3.00"
+/-1/16"1/2"+/-1/16"1/4-28 UNF*
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"3.25"
+/-1/16"1/2"+/-1/16"
1/4-28 UNF*
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
4.00"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*
Contact UsN/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
4.25"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*
Contact UsN/A

3/16"
+0/-0.005"3/8"+0/-0.020"
4.50"
+/-1/16"1/2"
+/-1/16"
1/4-28 UNF*
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"5.00"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*
Contact UsN/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
6.00"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
6.25"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
6.50"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
7.00"
+/-1/16"
1/2"+/-1/16"
1/4-28 UNF*
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
7.50"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
8.00"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*
Contact Us
N/A

3/16"
+0/-0.005"
3/8"+0/-0.020"
12.00"
+/-1/16"
1/2"
+/-1/16"
1/4-28 UNF*Contact Us
N/A

1/8", 4mm, 3/16"+0/-0.005"3/8"+0/-0.020"
Custom+/-1/16"
3/8", 1/2"+/-1/16"
1/4-28 UNF*Contact Us
Custom Page

Products

8 Automatic Rd., Unit 9A Brampton, ON Canada L6S 5N4

 Tel: 905.791.0377 | sales@dieco-techmfg.com

Online Submission:

Click 'contact us' above, for an online submission directly through our website.

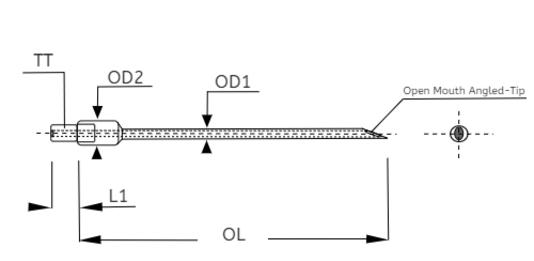

  OL - Overall Length                              L1 - Length

 OD1, OD2 - Outer Diameter               Material: 304 Stainless Steel

 TT - Thread Type                                   Hardness: N/A

                                                                 Dimensions: Imperial (")/Metric (MM)

E-Mail Us:

sales@dieco-techmfg.com

diecotechmfg@rogers.com

Product Specifications & Attachments:

 | 300-SERIES SS Blow Needles

 | Open-Mouth Blow Needles

Additional Information:

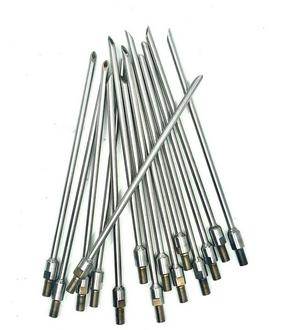

304-series stainless steel blow needles are designed for blow molding manufacturing processes to form plastic parts for end-users. These needles are designed with an angled-tip, at the mouth of the needle,  to help pierce plastic and direct compressed air flow. These can be used in conjunction with our stainless steel and/or brass blow needle cylinders.

Related Products:

How to Order:

Product: Open-Mouth Blow Needle

 |Mould Supplies and Component Parts

​​* ​Also available in 5/16-24 UNF  x 3/8" long threads

Open-Mouth BLOW NEEDLES

Description:

Call Us:

T: 905.791.0377 (Main)

D: 416.728.6889 (Sales)

​D: 647.998.6576 (Sales)


Dimensions:
